AccuMEMS SK00

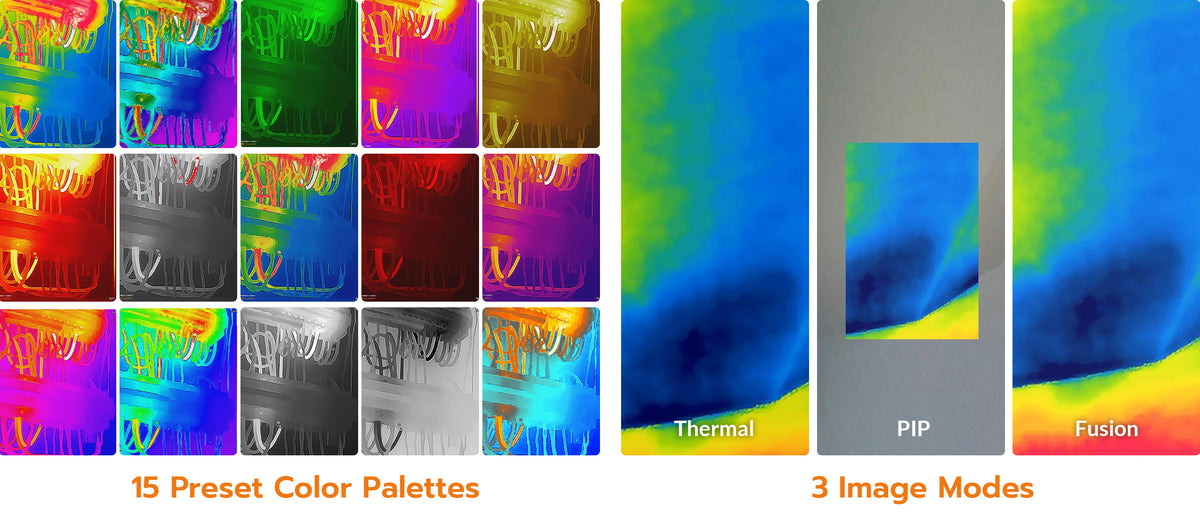

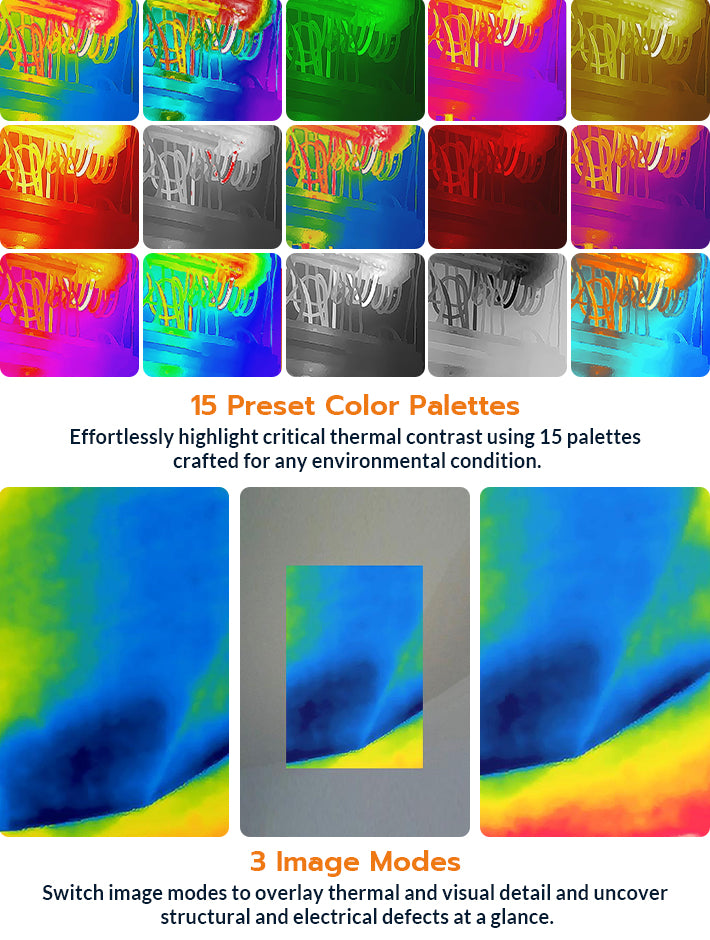

We are slowly bringing an old farmhouse back, so I wanted something simple for checking drafts and the electrical panel. The 50 by 50 degree field of view is wide enough that I do not have to back up far to get a whole window or door in frame, and the focus free lens means I never adjust anything, I just point and look. So far it has found a cold run along an exterior wall that turned out to be a gap behind the trim, and the freezer door seal we were sure was still fine. The panel has become my favourite part. I put the max spot on and walked down the breakers, and one of them lit up well above the others, which our electrician later said was a loose connection. I set the alarm for anything above a temperature I choose and it beeps and vibrates, so I do not have to stare at the screen while I work. There are sixteen palettes, which is more than I need, and PIP and Fusion modes are nice for showing my husband what he is looking at. It weighs almost nothing, so it lives in my pocket and comes out whenever something looks off.

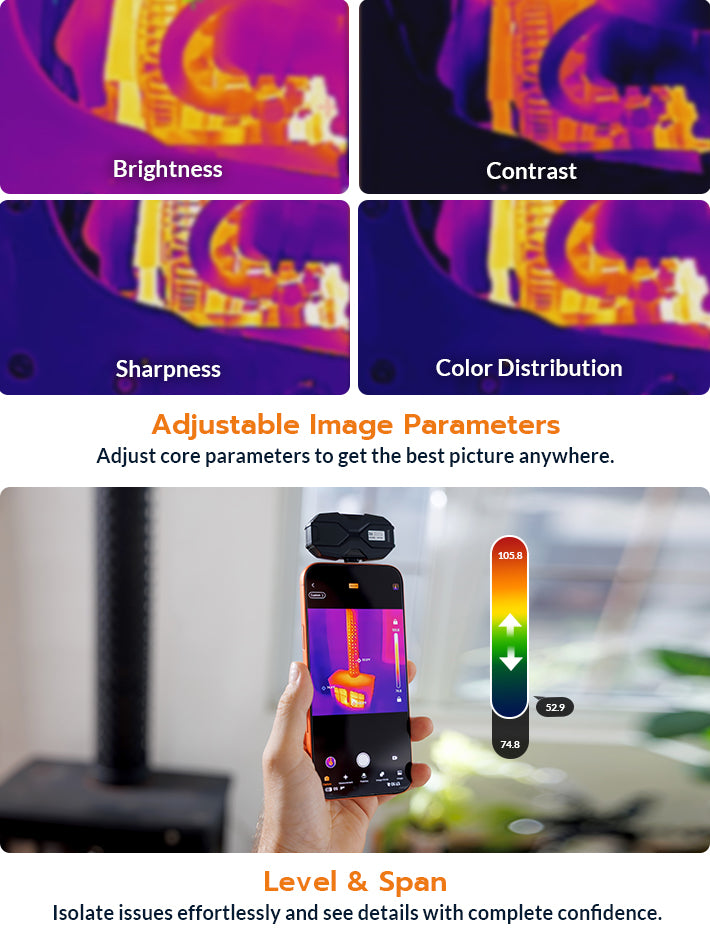

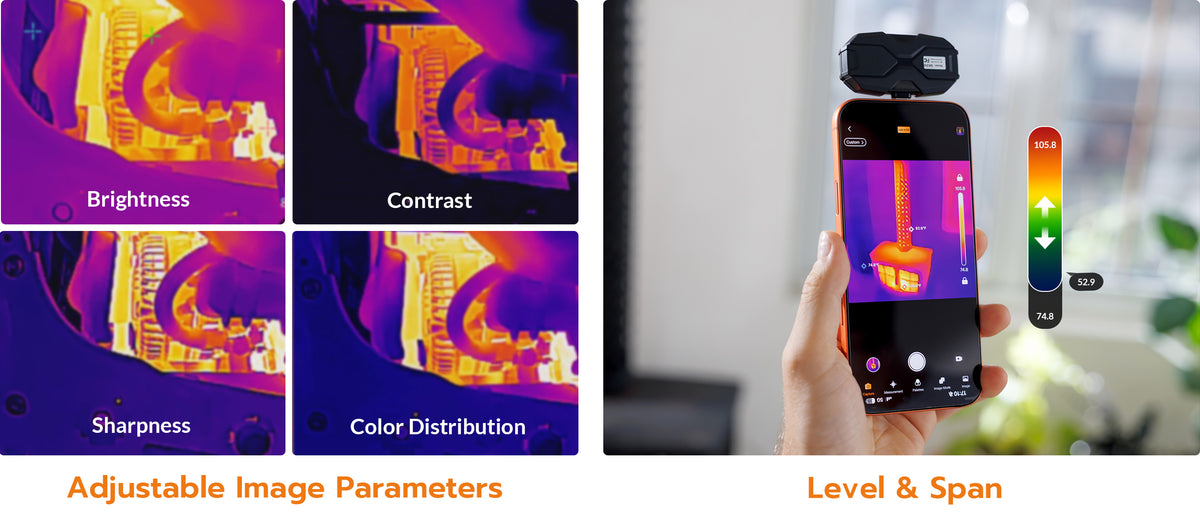

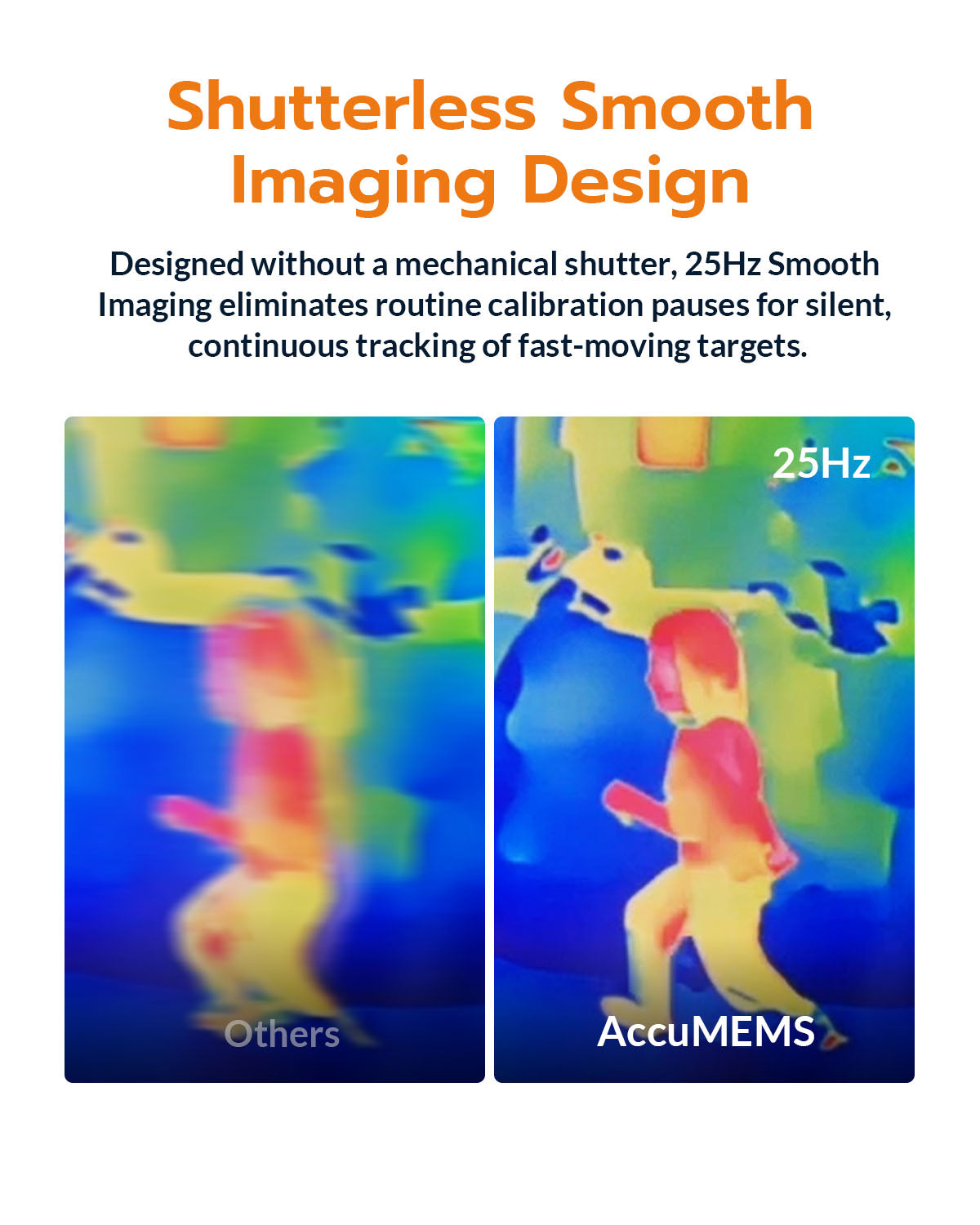

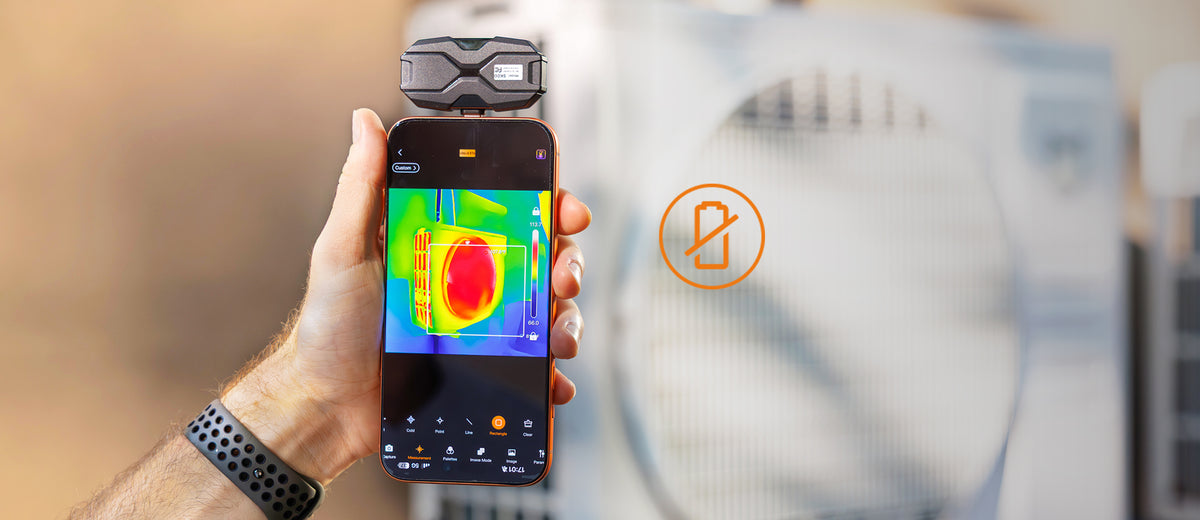

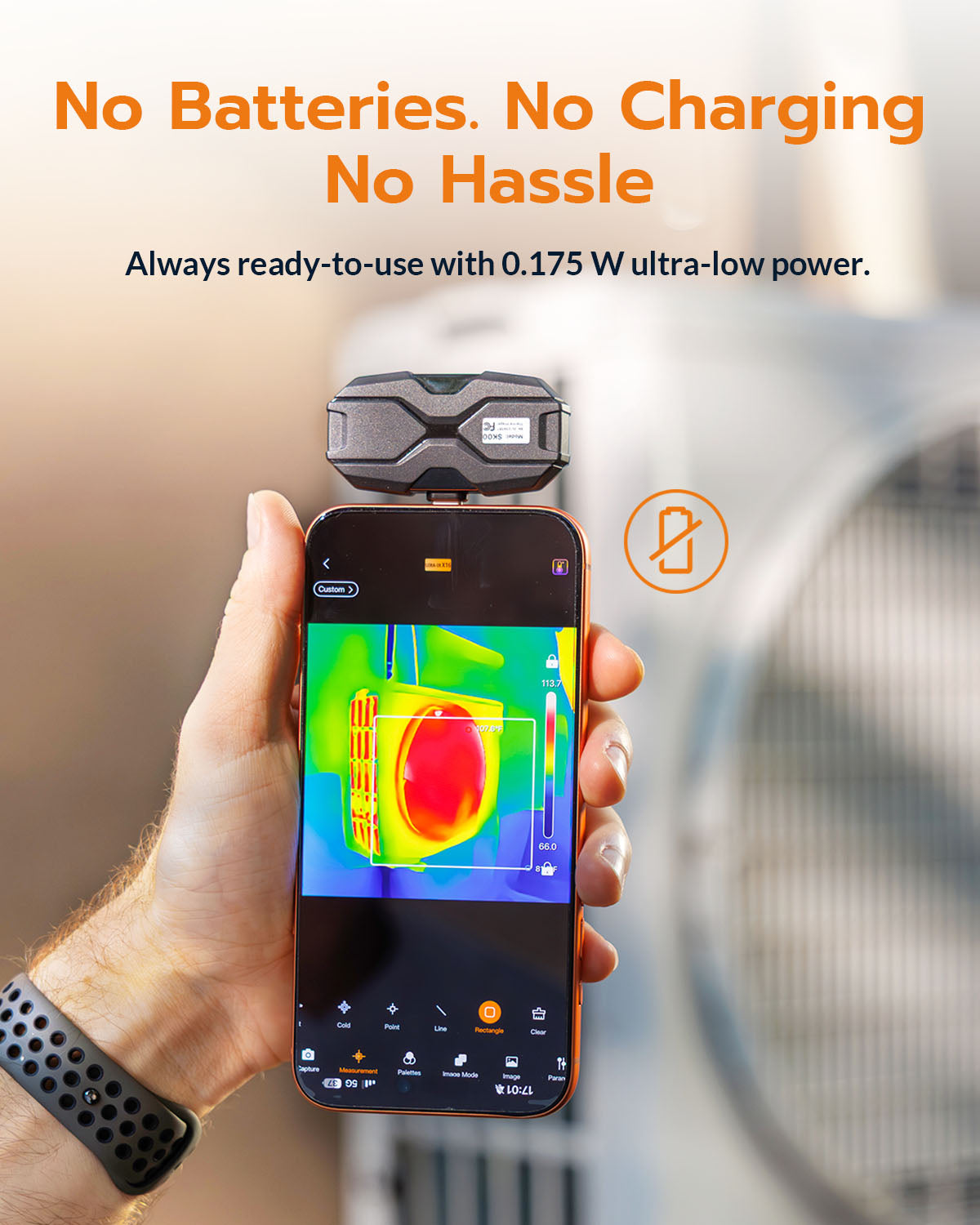

I do building maintenance, so I came to this from the cheap phone module side rather than the other way around. What I like: it never needs charging, it wakes up instantly, and the shutterless 25 Hz is a real difference from the module I borrowed last year that used to freeze for two seconds every time it recalibrated. Manual level and span is there, which I did not expect at this price, and that plus the spot measurements is most of what I actually use. It is rated under 50 mK for sensitivity, and at 175 mW it is invisible to the phone battery, I have never seen an hour of scanning move it more than a percent or two. Where it falls short is detail. On walls, doors, ducts and cold lines it is more than adequate, anything bigger than a couple of pixels reads fine. On a control board or a small valve the target is one or two pixels wide and I do not trust a number that comes off that, so for that kind of work I still borrow a higher resolution camera. The app is also busier than it needs to be and the printed guide is thin, it took me a few sessions to work out the difference between the scene presets and manual mode. I am not returning it. For the price I have not found anything that holds up this well, and the included Lightning adapter means it works on my own phone as well as the work one.

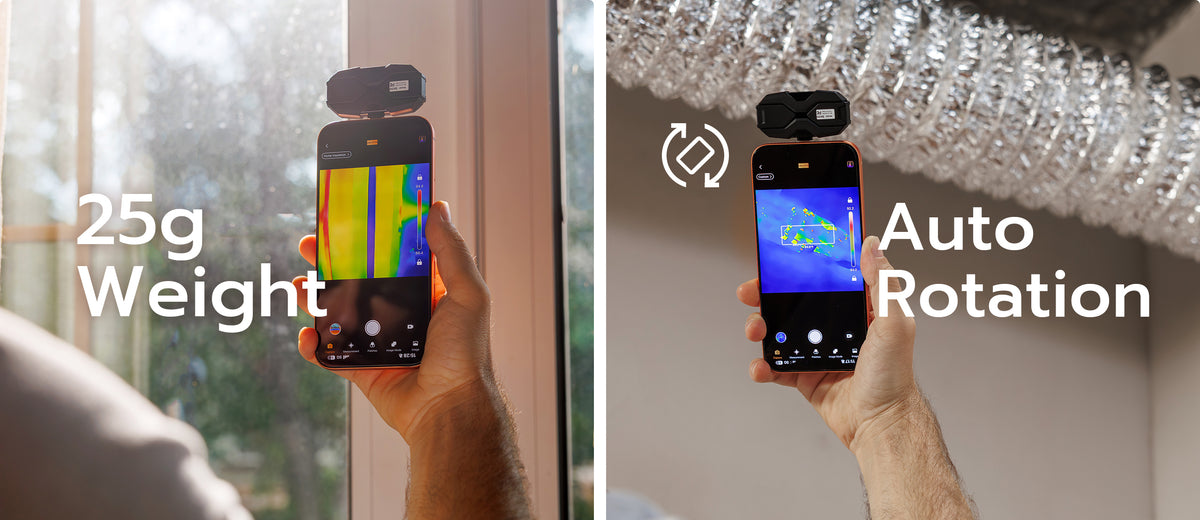

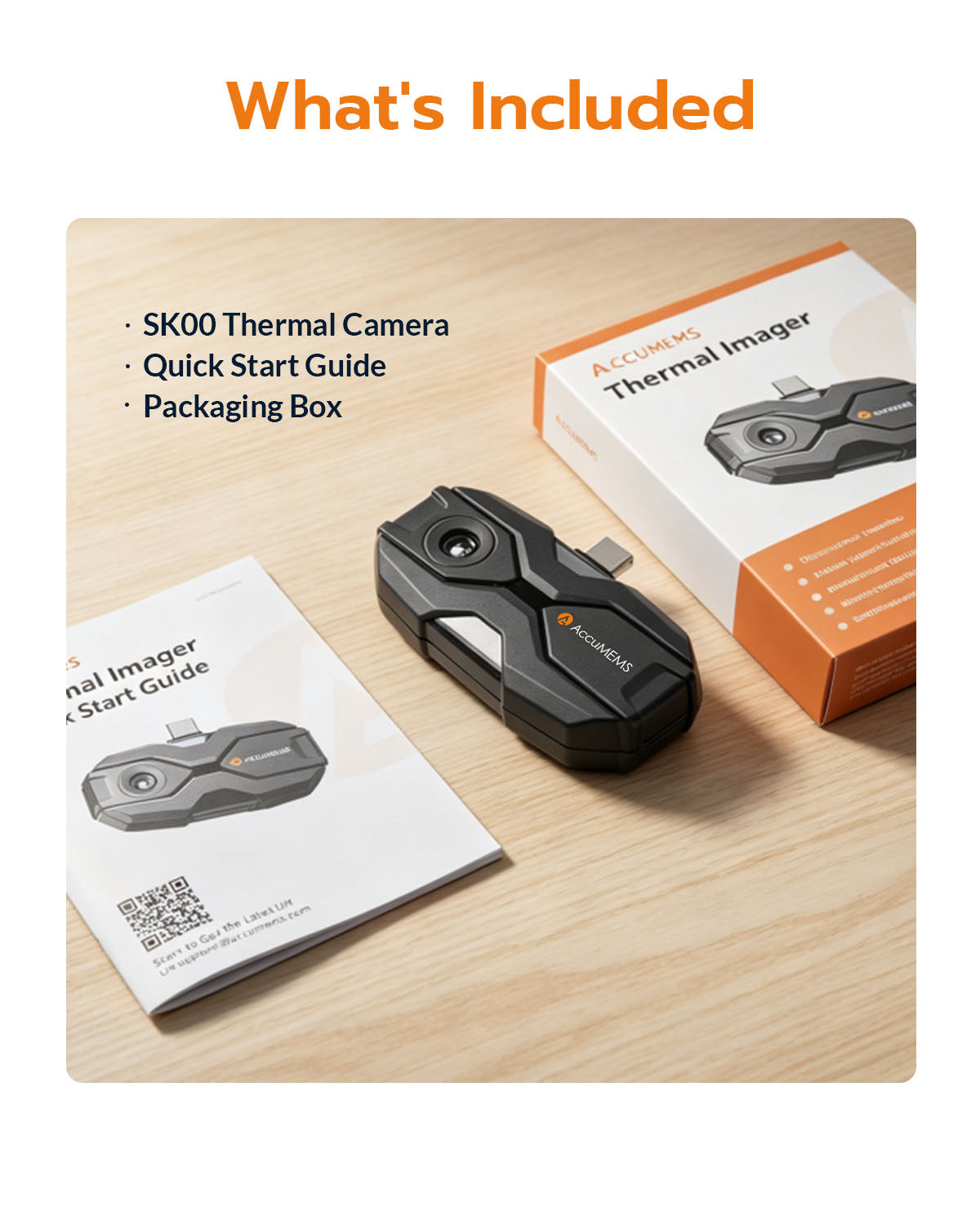

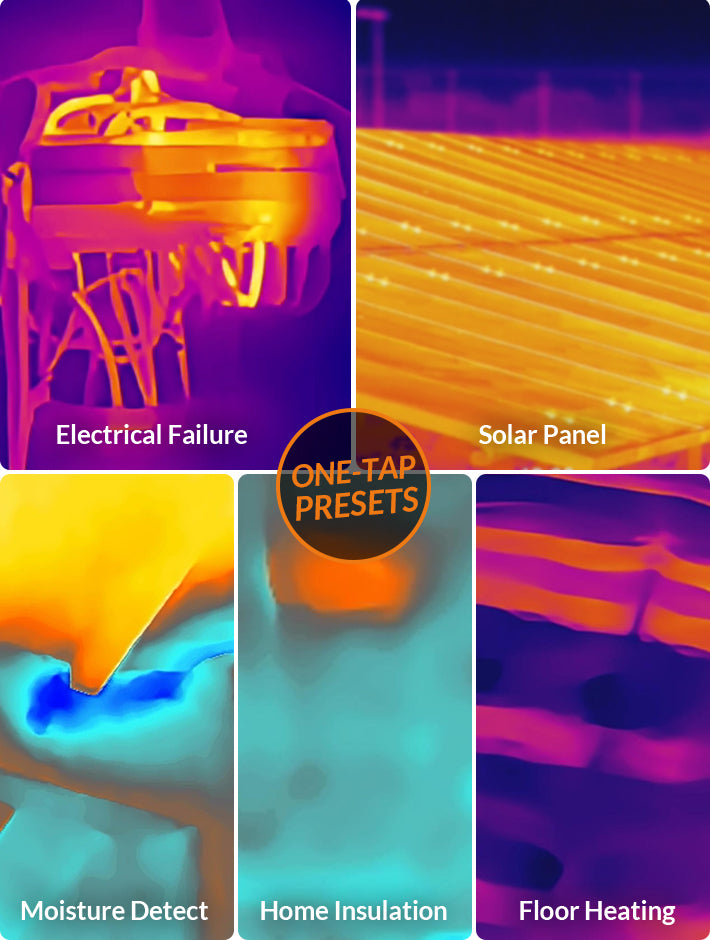

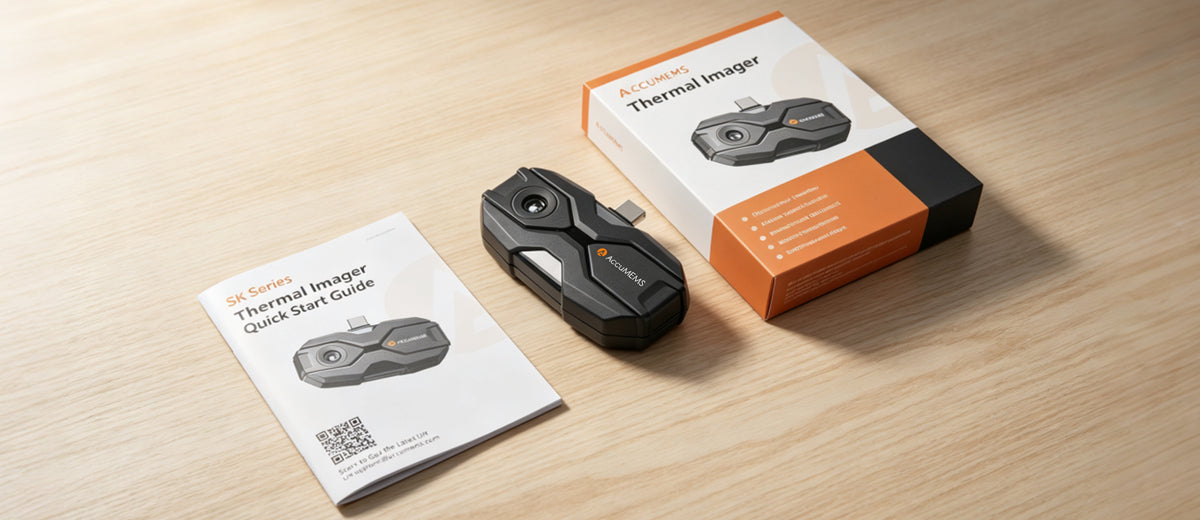

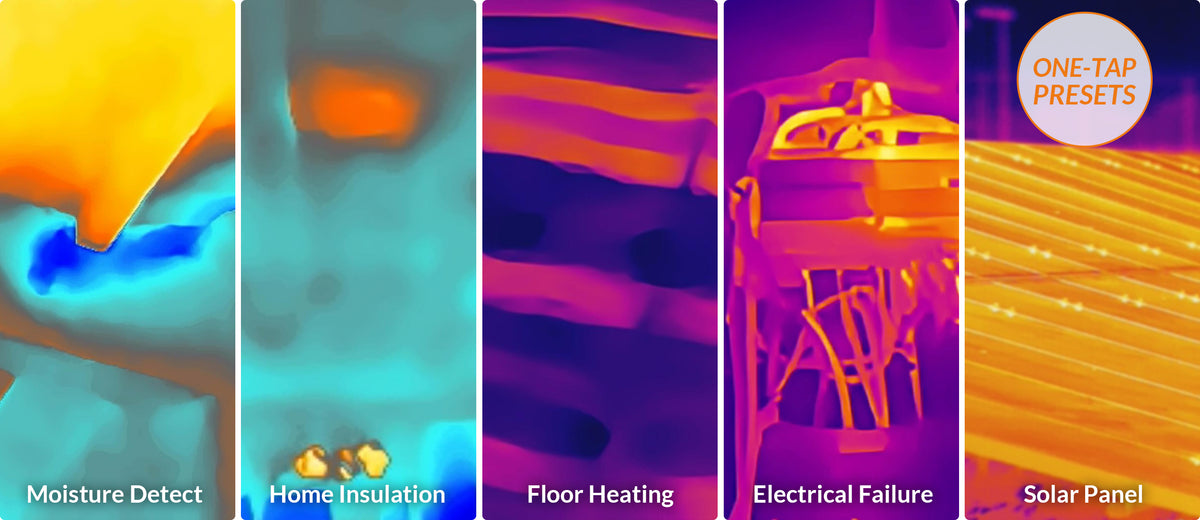

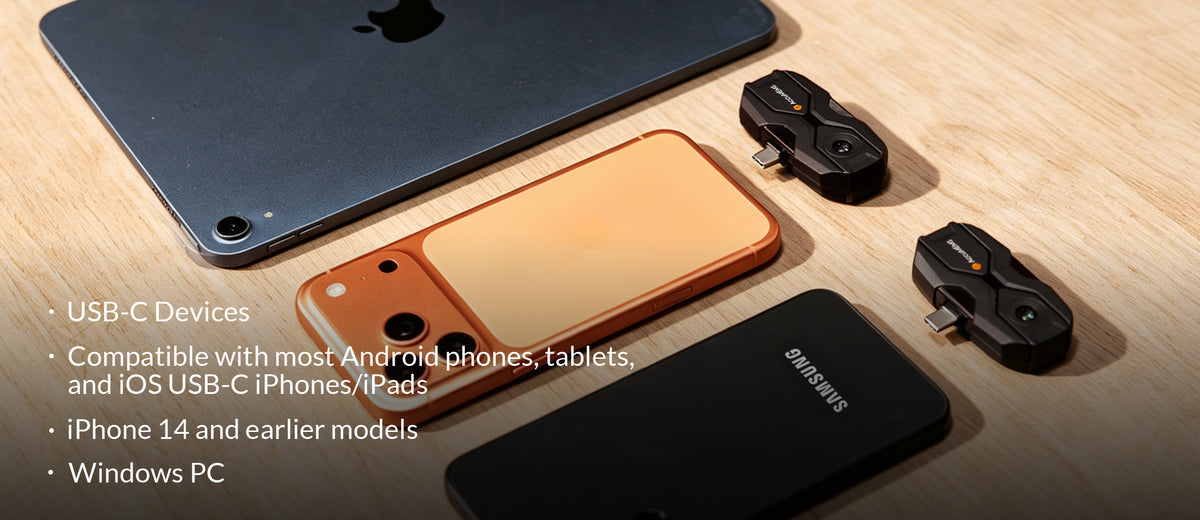

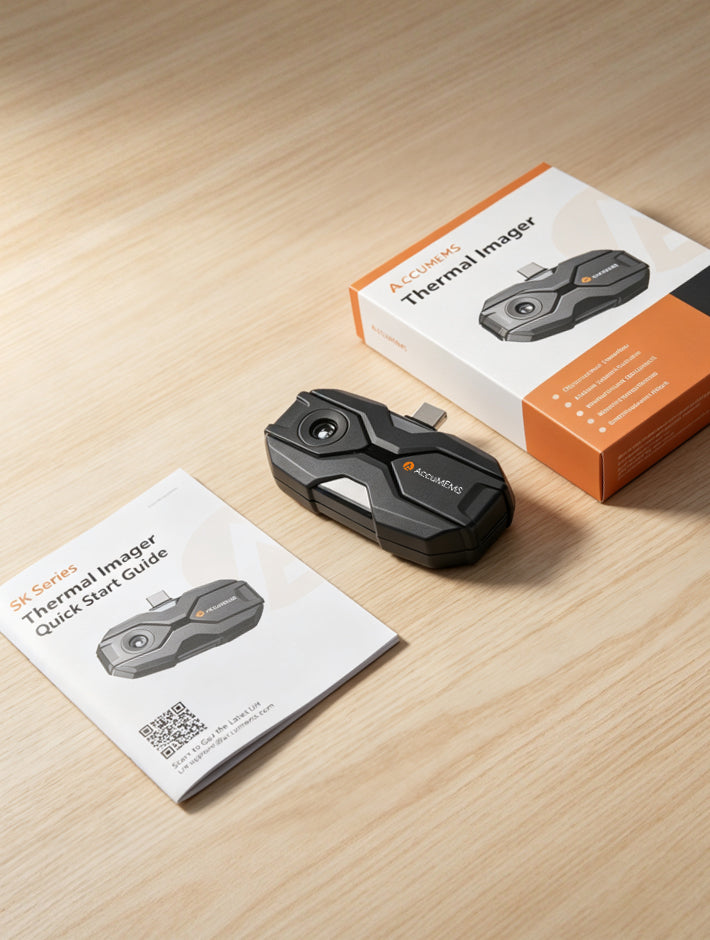

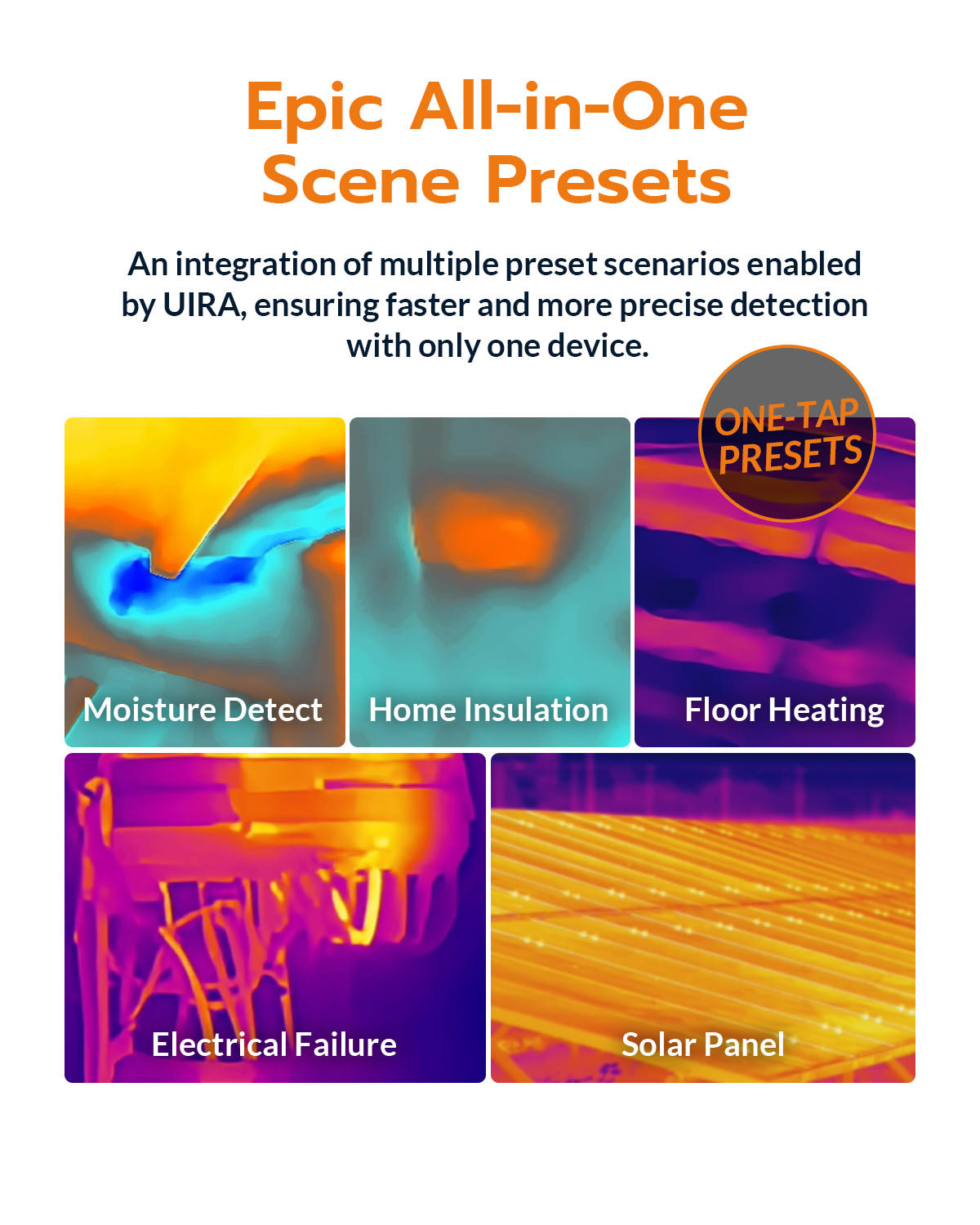

I have three rental units and a day job, so I need to know quickly whether a tenant's ceiling stain is worth a plumber today or a note in the file. With the Moisture Detect preset I can stand on the floor and see whether the area is actually cooler than the wall around it, and that has already saved me two pointless callouts. It worked the same way on a radiator problem in another unit, where a bedroom that stayed cold showed a clear break in the run under the window. I am not technical and I had never used a thermal camera before. The box includes a carrying case and a Lightning adapter for the iPhone, so there was nothing else to buy, and at 25 grams it just lives in my work bag. The alarm beeps and vibrates when a reading crosses a limit I set, which matters because I am normally writing on a clipboard while I scan rather than watching the screen.

I do my own renovation work, so this is a homeowner tool for me rather than a professional one. Two jobs made it worth the money. The floor heating in my kitchen was warming unevenly, and because the camera refreshes at 25 Hz you can watch the loops come up and see which run is lagging instead of guessing. I had my answer in ten minutes. Then a wall beside the shower kept bubbling paint. I put it in Moisture Detect and the cool band lined up exactly with where the drywall felt soft to the touch. I set one of the user spots on the wet area and left it there while I checked the rest of the bathroom, so I could watch the number move rather than just trusting a colour. There are sixteen palettes and I ended up on Ironbow for walls and one of the rainbow ones for the floor. The app has a lot going on underneath and it took me an evening of poking around to find everything, but nothing about the basic setup was hard, and it records MP4 clips, which I sent to a friend who does this for a living. He agreed the area was worth opening up.

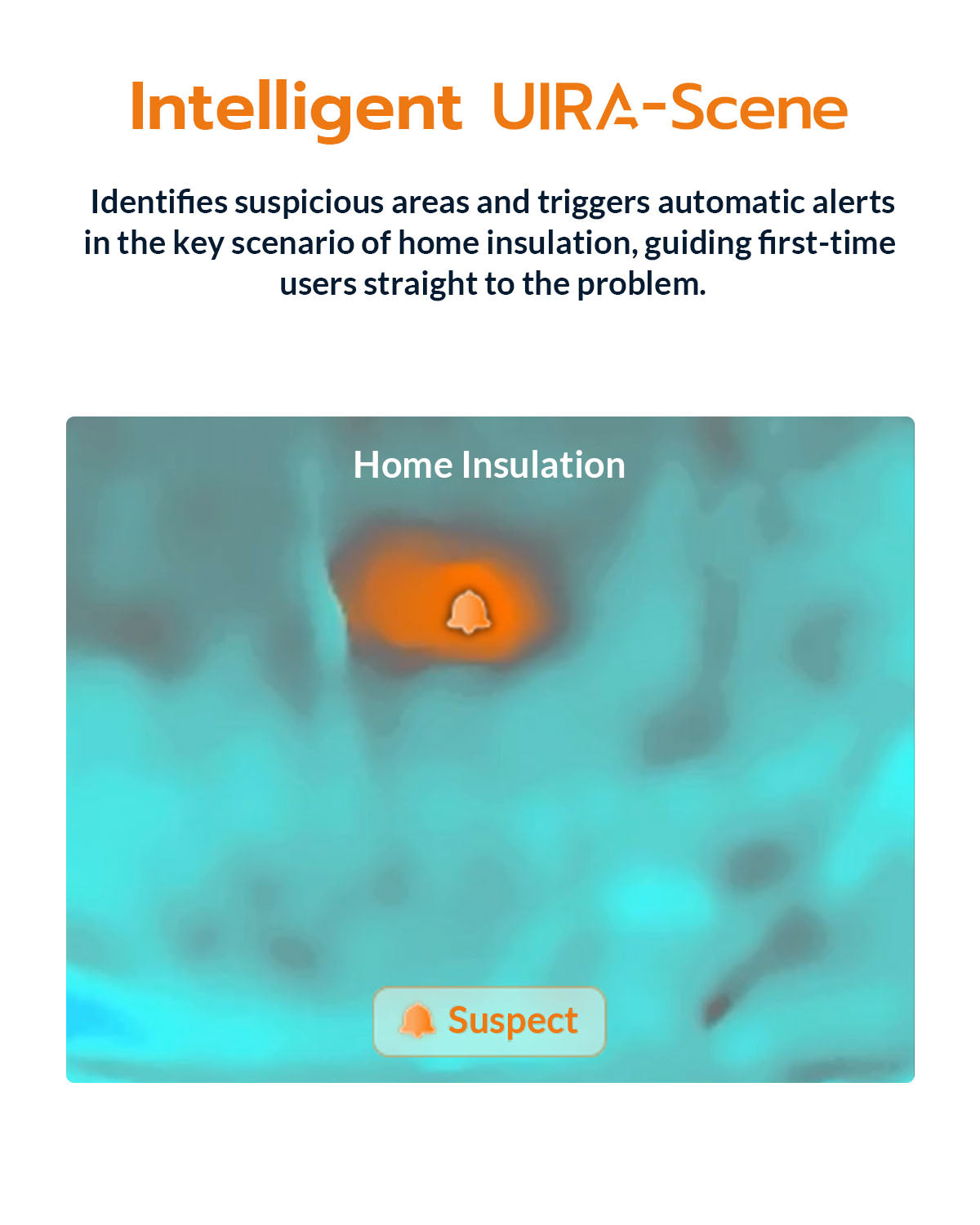

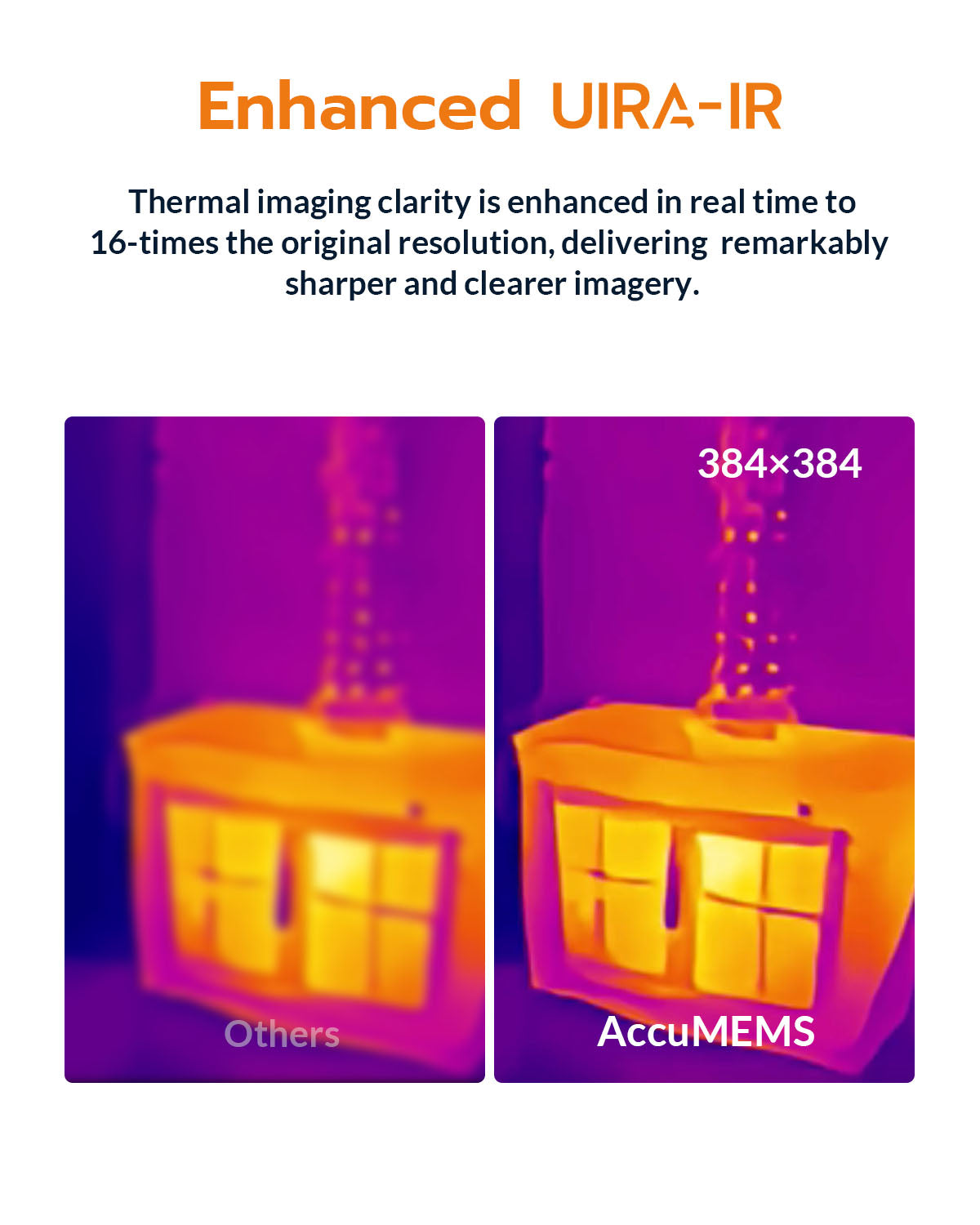

We bought a 1950s ranch in the spring and the two back bedrooms have never held heat. I could not justify four hundred dollars for an energy audit, so I tried this instead. It plugged into my iPhone, the app found it right away, and the Home Insulation scene was already set up, so I was walking the house within a minute of opening the box. A few rooms in I switched to manual level and span because I wanted the cold spots to stand out more, and that is when the walls really started talking. There are two stud bays above the porch with nothing behind them, a kitchen window that shows a clear cold outline where the seal has gone, and a strip along the basement sill that I could feel by hand once I knew where to look. 96x96 sounded low to me when I was reading the specs, but for problems the size of a wall you get the shape of the leak, not just a smudge. The shutterless design matters more than I expected, it never clicks and never freezes, so I can sweep the phone along a wall and the picture keeps up with me. I did the whole house in one pass and my phone battery barely moved.
